Home > Equipment > Dental Scanners > Aoralscan ELF
- Intelligent Scan
- Undercut Direction Analysis
- Motion Sensing Control
- Refined Scan
- Automatic Margin Line Recognition
- Bite Visualization
- 3 Year Warranty
- And… No Fees. Ever.
Advanced Modules for Every Need
Aoralscan Elf integrates SHINING 3D Dental’s advanced modules to support complete digital workflows across orthodontics, restorative dentistry, and implantology – enabling precise diagnostics, efficient treatment planning, and streamlined design for a smarter, more effective clinical experience.
ConsulOS
The ortho-treatment process can be simulated, and patients will be able to preview the post-treatment effect in advance.
MetronTrack
With the measurement and comparison functions, it helps improve dentist-patient communication efficiency and effectiveness by tracking patients’ data.
CreIBT
Designs an indirect bonding tray, which can be directly 3D printed to help orthodontists attach brackets faster and more accurately.

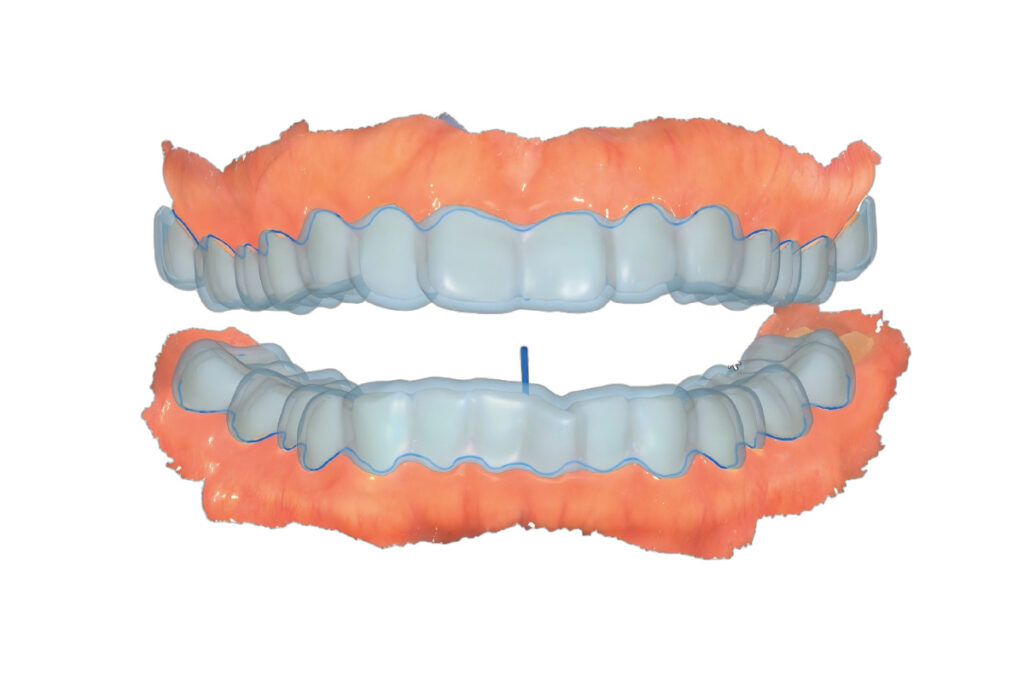

CreSplint
A smart tool that allows users to design retainers or splint automatically with minimum operation.

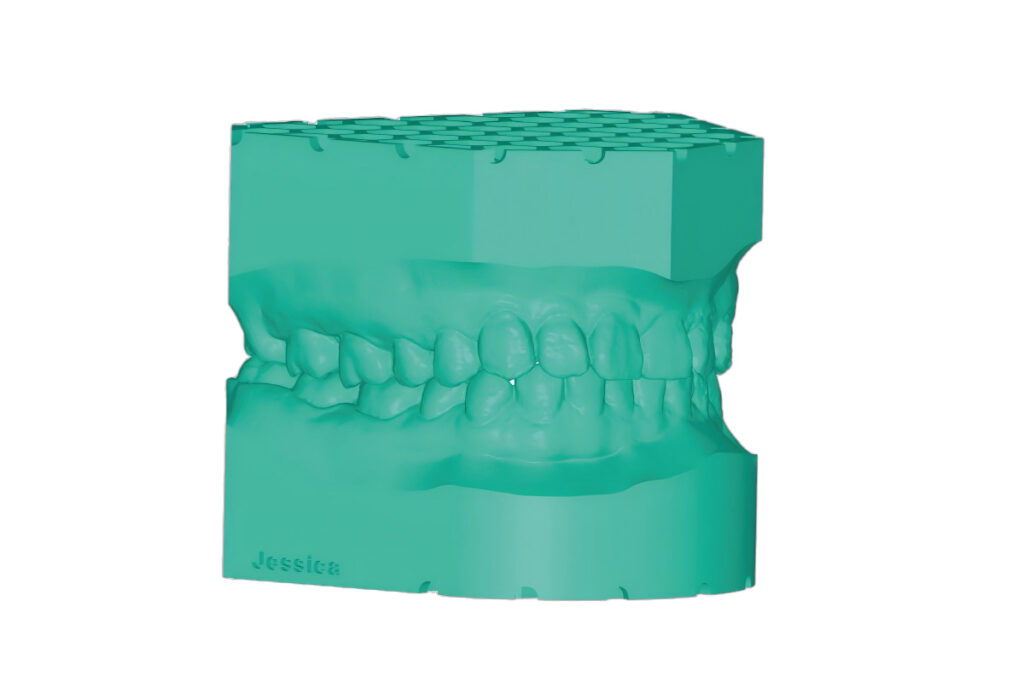

AccuDesign
Orthodontic or restoration models can be easily designed with AI for printing.

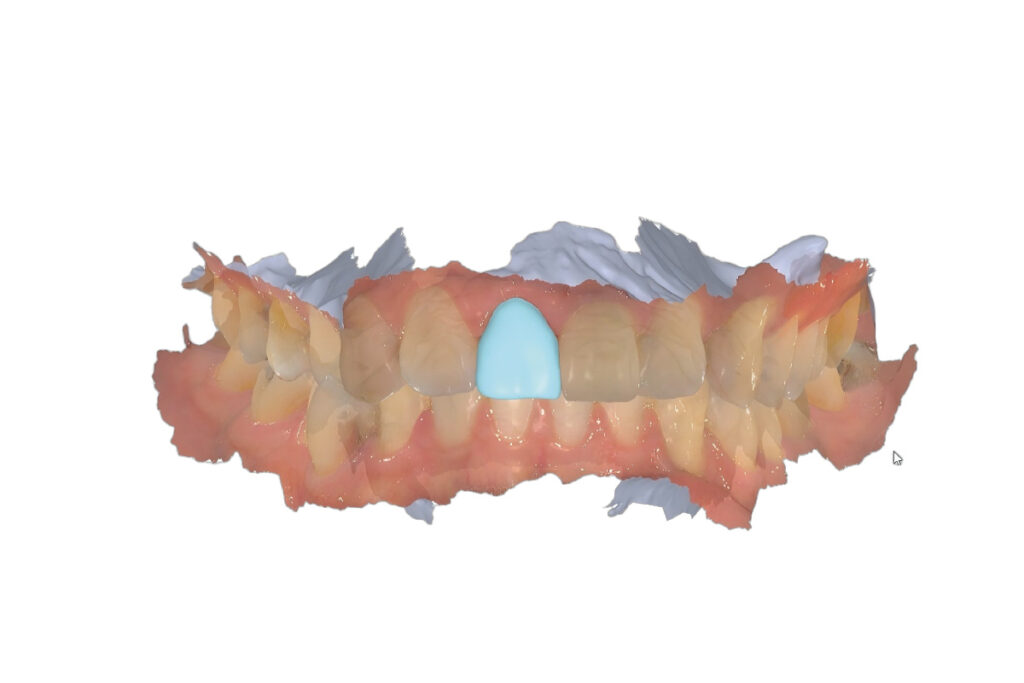

CreTemp
Temporary crowns can be designed and printed in the clinic, reducing the patient’s waiting time.

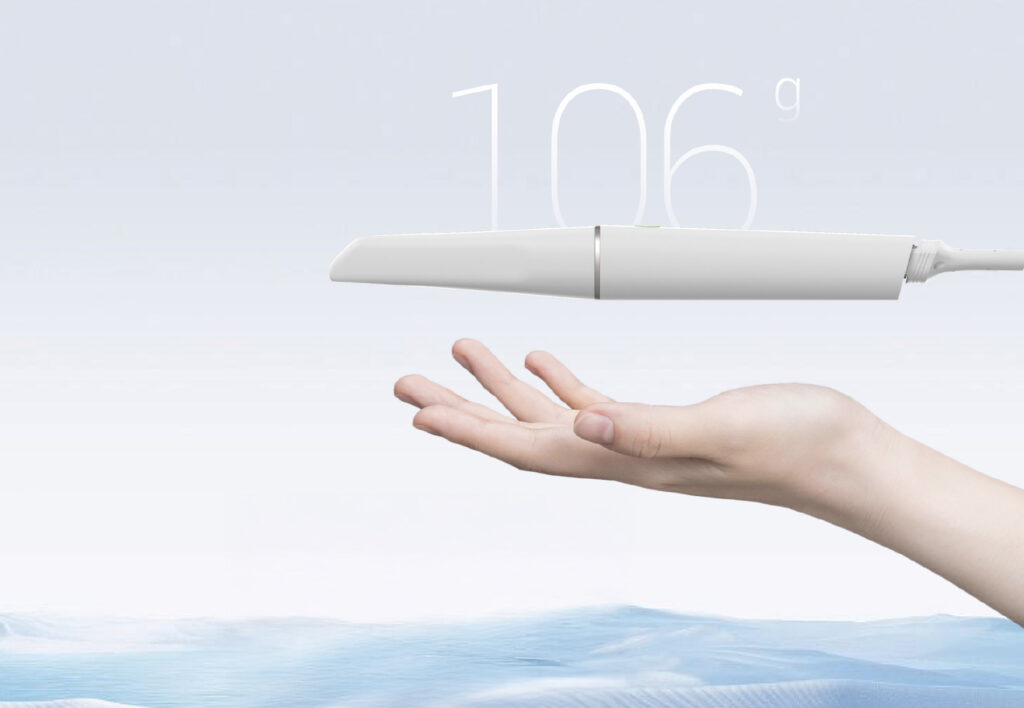

Lightweight, only 106g.
Weighing only 106g, Aoralscan Elf offers pen-like ergonomics that ensure comfortable, fatigue-free scanning – even during extended procedures.
Streamlined Connectivity
A single Type-C plug-and-play cable eliminates the need for bulky adapters and tangled wires, enabling fast setup and smooth operation.
Adaptable Tip Options
Comes with three interchangeable scanning tips, fully compatible with the Elite series, to meet a variety of clinical scenarios with ease.

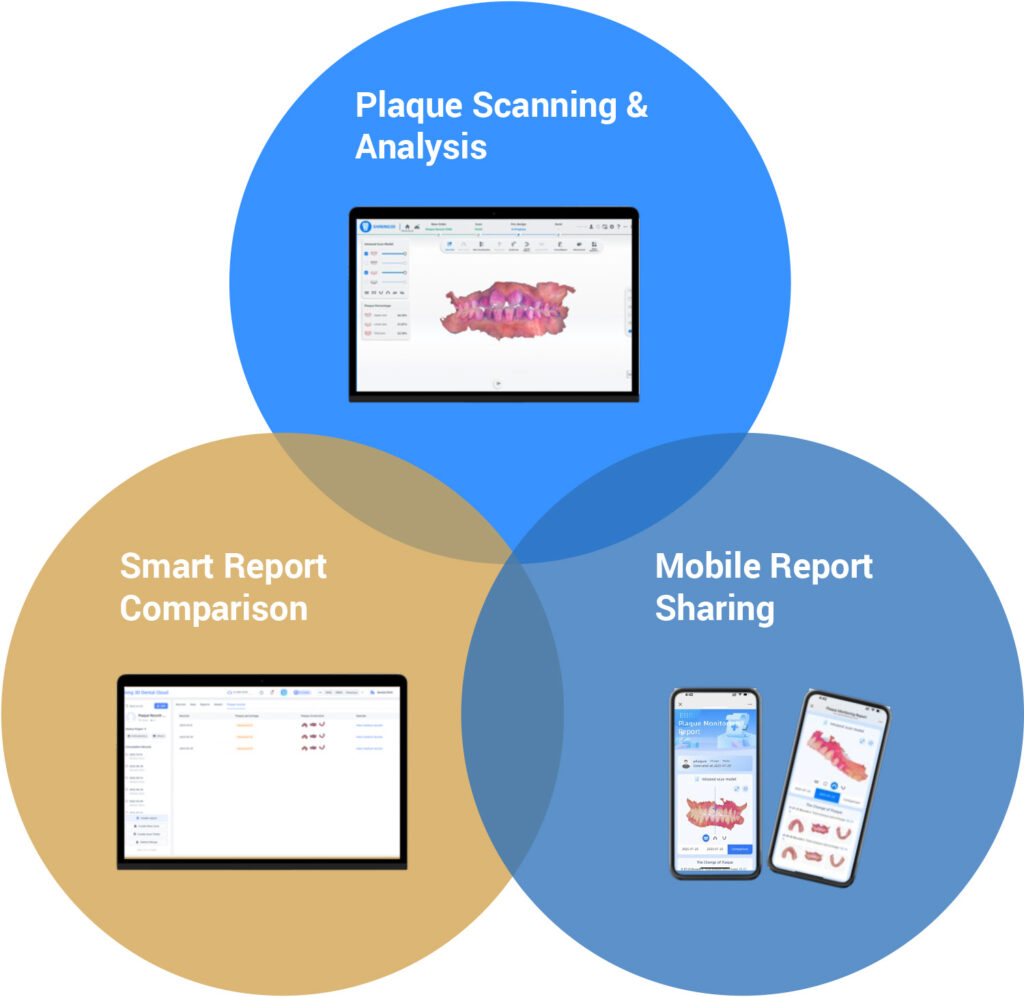

How to Drive Practice Prevention Business
- Simplifies clinians and hygienists’ workflow
- Raises patient awareness and PMTC acceptance
- Encourages patients to return for regular visits
- Enhances home care and strengthens patient engagement
Cloud Platform
SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between dental clinics and laboratories.
Order Statistics Analysis
Order Tracking System
Online 3D Data Preview
Technical specifications
| Scan Field | Big tip: 19 mm × 14 mm Standard tip: 16 mm × 12 mm Mini tip: 12 mm × 9 mm |
| Scan Principle | Non-contact scanner with structured light |
| Dimension (L × W × H) | 245.5 mm × 27 mm × 30.5 mm |
| Weight | 106 g (without cables) |
| Output | STL, OBJ, PLY |
| Connection Port | Type-C |
Recommended PC Configuration
| CPU | Intel Core i7-8700 or higher |
| RAM | Recommended: 32 GB |
| Hard Drive | 256 GB SSD or above |
| Graphic Card(GPU) | NVIDIA RTX 2060 6GB or higher |
| Operating System | Windows 10 Professional (64-bit) or later versions of the Windows operating system |
| Connection Port | 1 USB Type-C@3. 0A (5V, 3A) and 1 Type-A USB 3.0 (or higher) |
