Home > Equipment > 3D Printers > Asiga PRO 4K
Unrivalled 3D print monitoring technologies
Engineered to deliver production continuity in any environment.
Asiga SPS™ technology
Providing platform positioning feedback ensuring your build platform is where it needs to be for every layer. Z height precision guaranteed.
Features
Automatic LED power adjustment
Our internal radiometer provides real-time feedback and automatic cure time adjustment based on actual LED power. Precise layer curing for every layer.
Industrial grade high-power LED’s
The PRO 4K is available with either 365nm, 385nm or 405nm Industrial-grade LEDs. 385nm UV LED recommended for most applications for precise layer curing and ability to process waterclear materials.

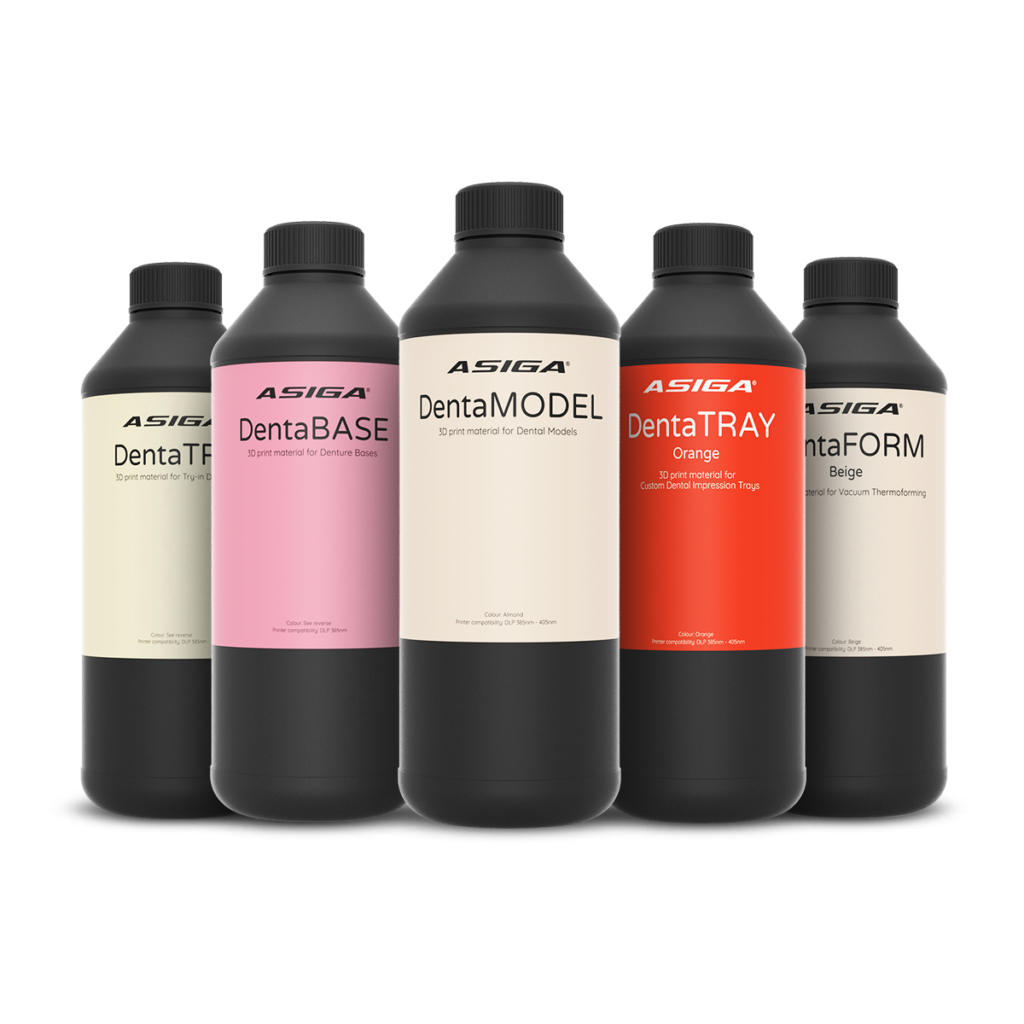

Material Freedom
Over 500 materials available.
Experience the widest choice of materials on the market with unlimited and unrestricted access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with the latest validated 3D print materials thanks to Asiga’s Open Material Architecture.
Crystal Clear 4K Imaging
4K mode for the ultimate surface finish
How does it work? Asiga 4K mode uses pixel shifting technology to reduce pixel size which enhances surface smoothness and detail definition. This is our default printing mode but you can switch to native mode if required.
Production output – Dental Models
Volume
9-11 dental models (lay flat)
Print time
20 minutes @ 100 micron layers
Production output – Dentures
Volume
16-18 denture bases (standing)
Print time
60 minutes @ 100 micron layers
Reliable output for quality assurance and patient safety
Over 93% of data points within 50 microns of the original cad data. Validated by 3Shape.
Technical specifications
| Product specification | PRO 4K45 | PRO 4K65 | PRO 4K80 |
| Build Volume X, Y, Z | 122 × 69 × 200mm 4.8 × 2.71 × 7.87 inches | 176 × 99 × 200mm 6.94 × 3.9 × 7.87 inches | 217 × 122 × 200mm 8.54 × 4.8 × 7.87 inches |
| Pixel Size – 4K mode | 32μm | 46μm | 56μm |
| Pixel Size – Native mode | 45μm | 65μm | 80μm |
| Technology | DLP | DLP | DLP |
| LED Wavelength | 385nm or 405nm (high power LEDs) | ||
| Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material | ||
| Software | Asiga Composer software. Lifetime updates included | ||
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) | ||
| Network Compatibility | Wifi, Wireless Direct, Ethernet | ||
| Power Requirements | 90-264VAC, 50/60Hz, 600Watts, (100V – 6Amp Max. 240V – 2.5Amp) | ||
| System Sizing | 465 × 540 × 1345mm / 140 kg 18.3 × 21.3 × 53.0 inches / 309 lb | ||
| Packed Sizing | 900 × 700 × 1540mm / 205 kg 35.4 × 27.6 × 60.6 inches / 452 lb | ||
| Warranty | 12 months manufacturer’s warranty | ||
| Technical Support | Unlimited lifetime technical support included | ||
| Bundle Includes | 3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit | ||
Gallery
Videos
Asiga PRO 4k
Dental Clinic Digital Journey
How to Import to Composer
Included with your PRO 4K is everything you need to start printing out of the box.
- PRO 4K Printer
- Calibration toolkit
- Asiga material of your choice and build tray
- Asiga Flash curing chamber
- Composer software
- Unlimited lifetime technical support
