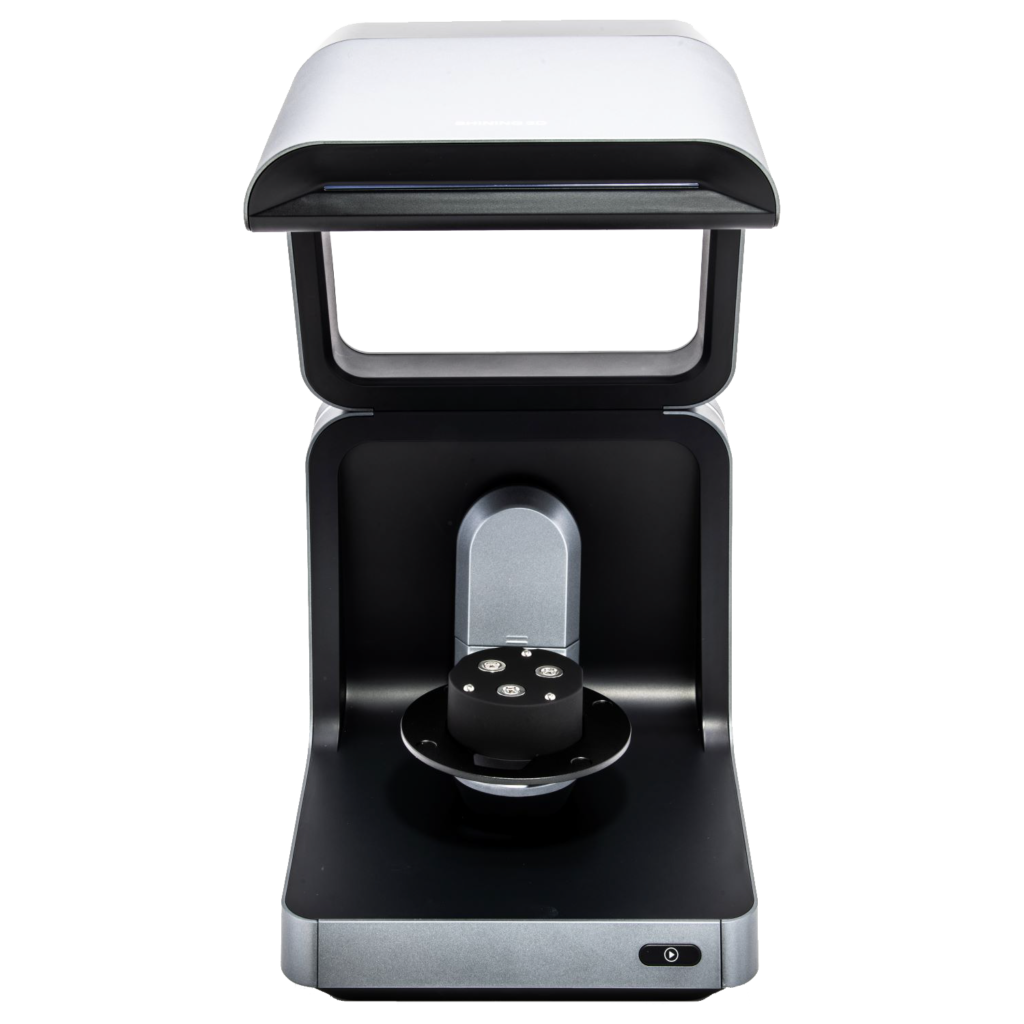

AutoScan-DS-MIX
AutoScan-DS-MIX is a high-end dental 3D scanner developed by SHINING 3D. With an open design and modular structure, AutoScan-DS-MIX features fine details, high accuracy, and high efficiency to fulfill users’ demands of a wide range of dental applications including crown & bridge, implant, bar, etc.
Home > Equipment > Dental Scanners > AutoScan-DS-MIX
More Than Details
- 2×5.0 MP cameras
- Accuracy ≤7μm
- Intelligent scan
- High-end implant and veneer applications
Features

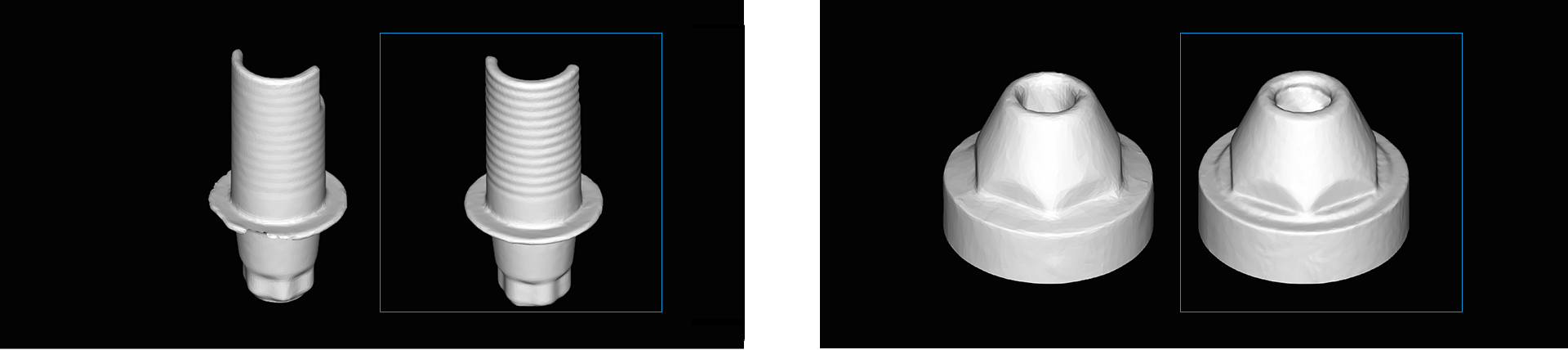

Ultra-fine Details
Thanks to dual 5.0 MP high resolution cameras, AutoScan-DS-MIX can perfectly capture edge lines of abutments and features of scan bodies. 2*1.3MP vs. 2*5.0MP

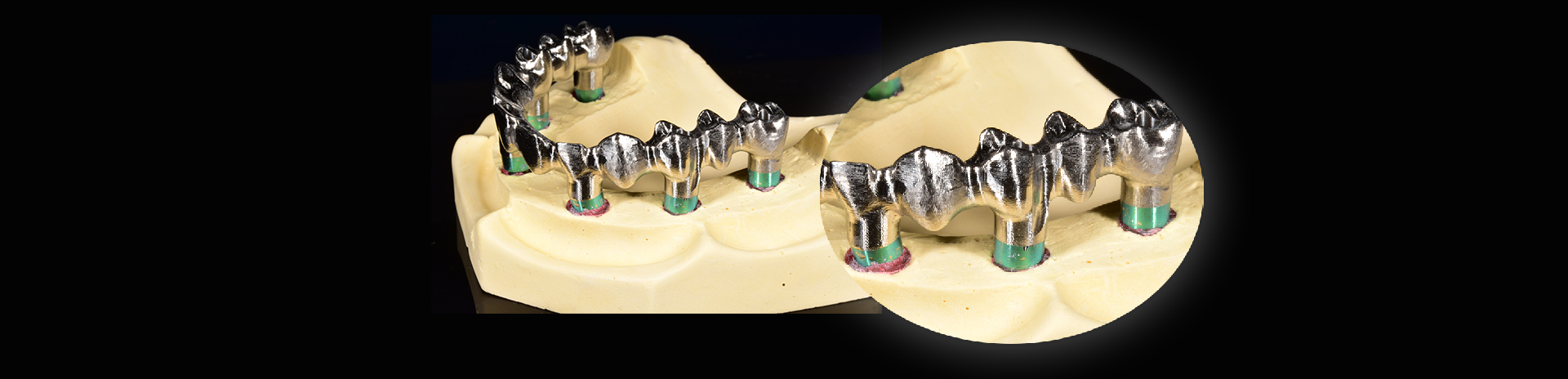

High Accuracy
Scan accuracy ≤7μm assures reliable scan result.
High Efficiency
AutoScan-DS-MIX supports high-efficiency scan mode: 13 seconds for scanning a full arch.
With an All-in-one scan, it can improve scan efficiency by approx. 30%.
Bite
6s
Single Jaw
13s
1-4Dies/ 5-8Dies
18/33s
Impression
32s
Note: speedy mode for impression; default mode for others

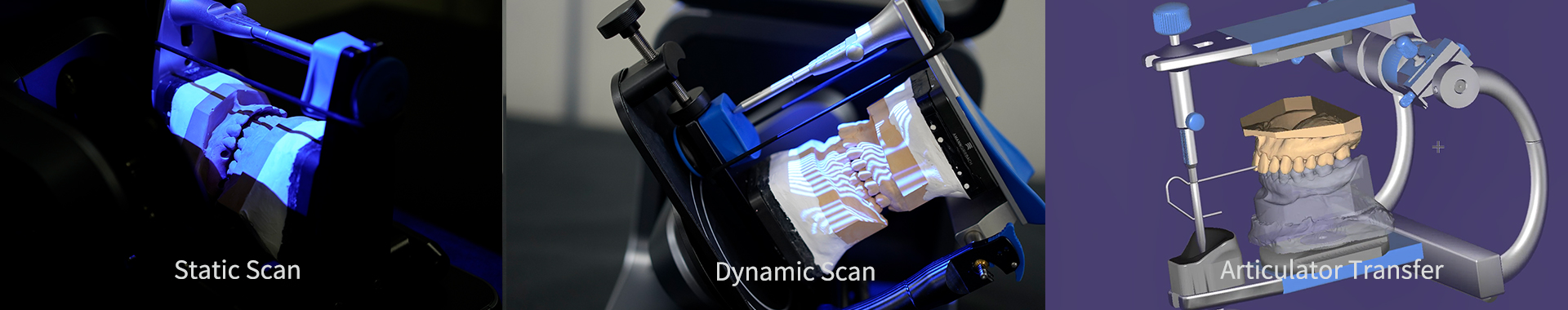

Flexible Articulator Scan
AutoScan-DS-MIX supports not only dynamic and static two scan modes for most common articulators, but also supports articulator transfer for Artex, Kavo, SAM and Bio-Art articulators.

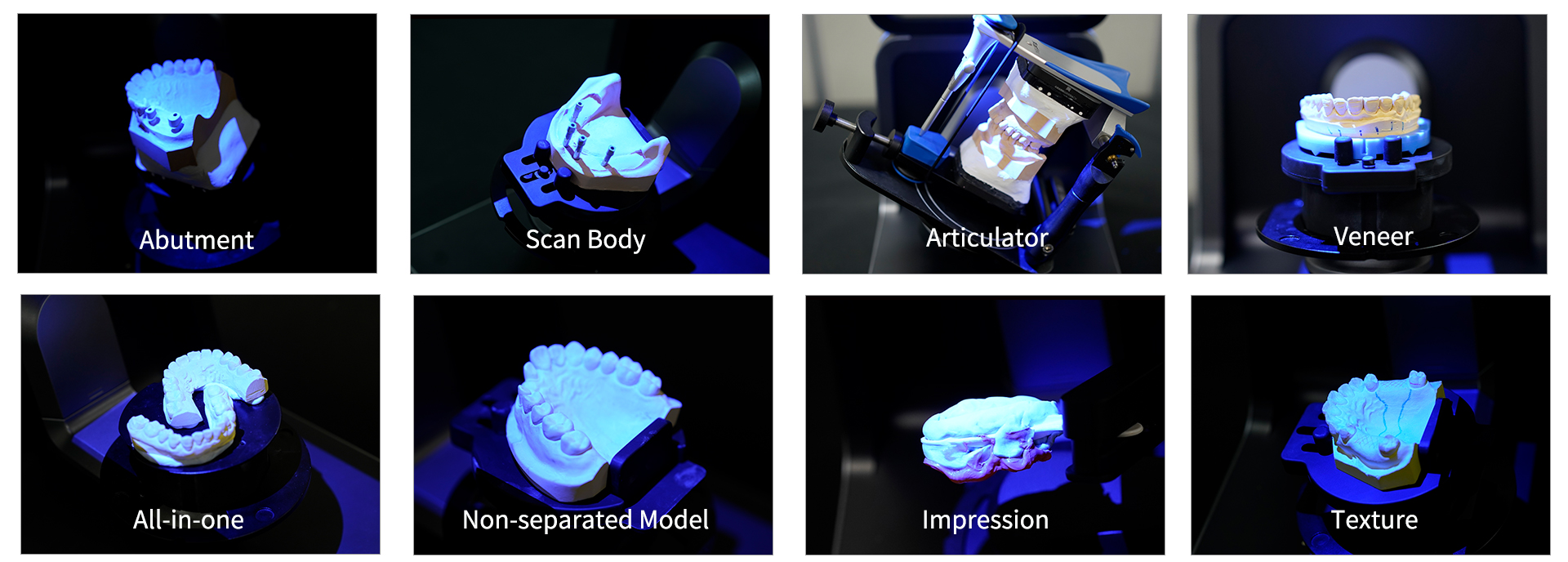

Versatile Applications
With exceptional scan performance, AutoScan-DS-MIX supports versatile dental scan applications, inlc. abutment, scan body, articulator, all-in-one, impression, texture, etc.

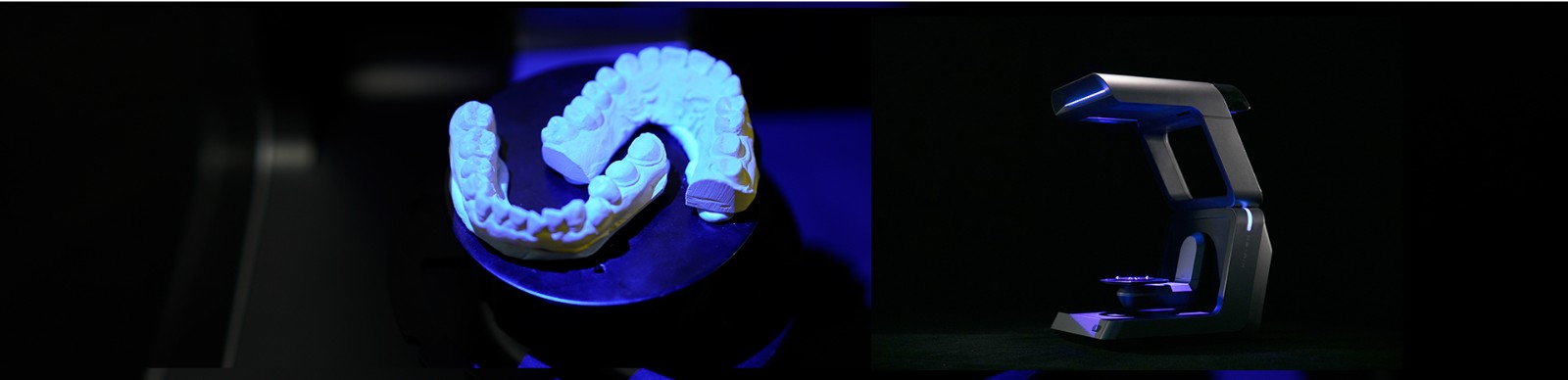

All-in-one-scan
Non-separated full jaws scan improves scan process efficiency by approx 30%.
Intelligent Add-Scan
With the scan software supporting automatic detection of unscanned surfaces and automatic add-scan, AutoScan-DS-MIX offers intuitive user experience.

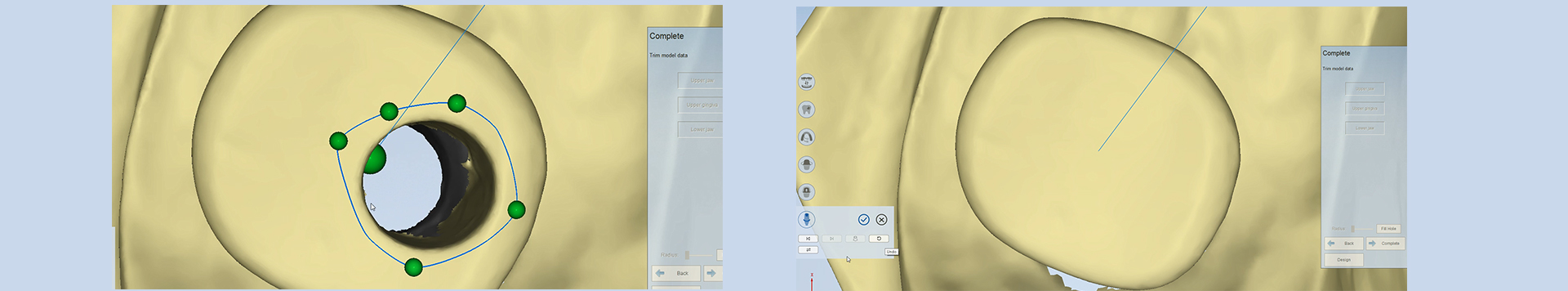

Screw Channel Sealing
Users can seal the screw channel in the scan software, which optimizes the scan workflow.
Technical specifications
| MODEL | AUTOSCAN-DS-MIX |
| Camera Resolution | 2×5.0MP |
| Accuracy | ≤7μm (ISO12836) |
| Articulator Scan | Dynamic/static; support articulator transfer |
| Output Format | STL, PLY |
| Light Source | Blue Light |
| Dimension | 238(L)x340(W)x447(H)mm |
| Weight | 7.5kg |
| Interface | USB3.0 |
| Power Supply | DC24V |
| Scan Time | bite scan: 6 seconds upper/lower jaw scan: 13 seconds 1-4 dies scan: 18 seconds 5-8 dies scan: 33 seconds impression scan: 32 seconds |
Minimum computer specifications
| System | Win7, Win10 and Win11 (64 bit only) |
| USB Ports | Scanner needs one USB 3.0 port |
| Display Card | Nvidia GeForce Graphics card, Nvidia GTX1060 or RTX 3070 or better |
| Memory | 32G Ram, preferred |
| CPU | Intel Core i7 or better |
| RAM Memory | 16G or better |
